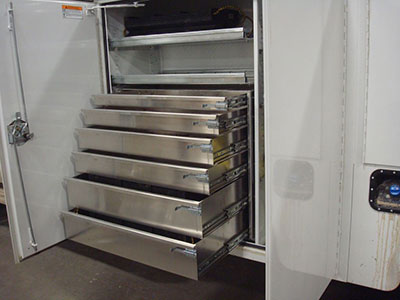

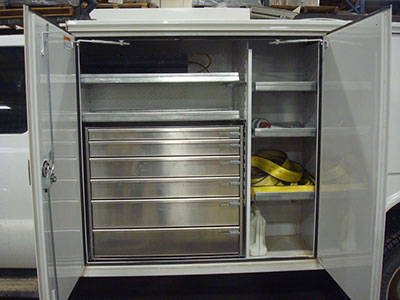

Drawer Pack Ordering Guide


In order for ACE to quote drawer packs we need to know the following:


  1. Maximum outside width, depth and height – don’t forget to take into account the door latch obstruction
  2. Number of drawers – we may need to adjust based on maximum height available for drawer pack
    NOTE: Costs are more influenced by the total number of drawers than the size of the drawers – fewer, larger drawers will save you money.
  3. Height of each drawer if they are different from each other – we may need to adjust based on maximum height available for drawer pack
  4. Order of drawers bottom to top and which ones are most important for your application
  5. Slide capacity MD (250lb nominal) or HD (300/500lb nominal) – when selecting HD slides minimum depth of drawer is 3” – when selecting MD slides minimum depth of drawer is 2”
  6. Drawer latches (single on right or dual) – drawer packs 18” wide or less have single latch only
  7. Top storage tray (bolt-on or integrated)
  8. Riser stand  – customer supplies height dimension to clear bottom door jamb – can be made higher to use for bulk storage
  9. Any special requirements you might have

We take this information, run it through our template and quote a drawer pack closest to your requirements.
